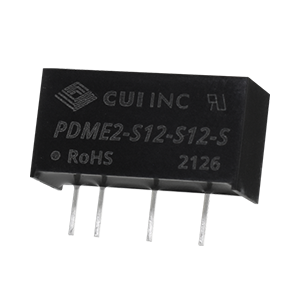

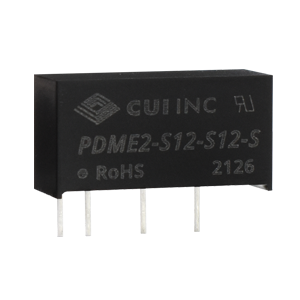

PDME2-S Series

The PDQ2-S regulated DC-DC converter series is a family of 2 W isolated modules offering a wide 2:1 input range and 1,500 Vdc isolation. Housed in a compact 8 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.

The PCN2-S unregulated DC-DC converter series is a family of low cost 2 W isolated modules offering efficiency up to 86% and 1,000 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.

The VAWQ3 series is an encapsulated 3W isolated DC-DC converter in a compact DIP package, designed for high efficiency and reliability. With a wide 4:1 input voltage range, up to 77% efficiency, and an operating temperature range of -25 to +95°C, the series is well-suited for industrial automation, telecom, remote sensor systems, and portable electronics.
