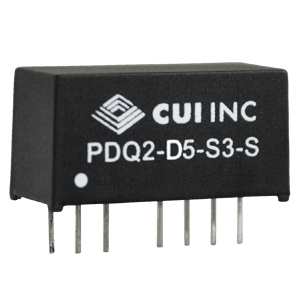

The PDQ2-S regulated DC-DC converter series is a family of 2 W isolated modules offering a wide 2:1 input range and 1,500 Vdc isolation. Housed in a compact 8 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
Features
  • 2:1 input range
  • Single/dual regulated outputs
  • Industry standard 8 pin SIP package
  • Remote on/off control
Specifications
  • Power (W): 2
  • Input Voltage Range (VDC): 4.5 ~ 75
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: SIP8
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE
  • RoHS Compliant: Yes
