VAWQ3 Series
VAWQ3 Series
VAWQ3 Series

VAWQ3 Series

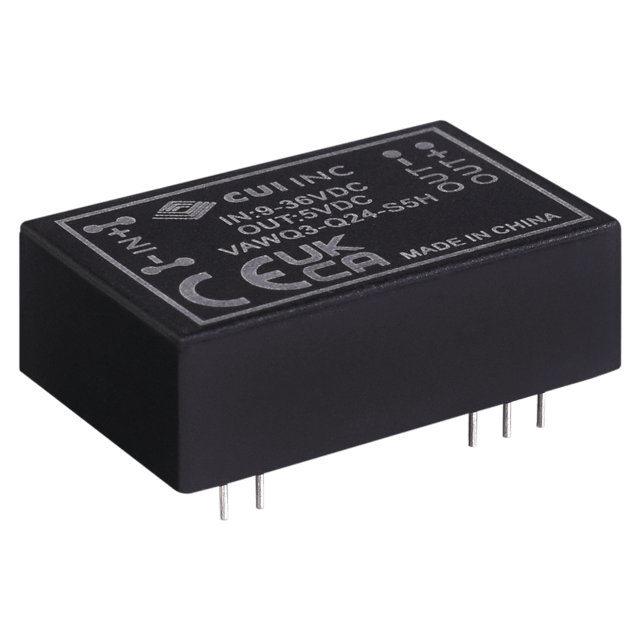

The VAWQ3 series is an encapsulated 3W isolated DC-DC converter in a compact DIP package, designed for high efficiency and reliability. With a wide 4:1 input voltage range, up to 77% efficiency, and an operating temperature range of -25 to +95°C, the series is well-suited for industrial automation, telecom, remote sensor systems, and portable electronics.
Features
  • 4:1 input range
  • Single/dual regulated outputs
  • Industry standard 24 pin DIP package
  • Short circuit protection
  • Wide temperature range -25 ~ 95°C with derating
  • Efficiency up to 77%
Specifications
  • Power (W): 1.98 ~ 3
  • Input Voltage Range (VDC): 9 ~ 72
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -25 ~ +95
  • Standard Footprint: DIP24
  • Isolation (VDC): 3000
  • Isolated: Yes
  • RoHS Compliant: Yes
