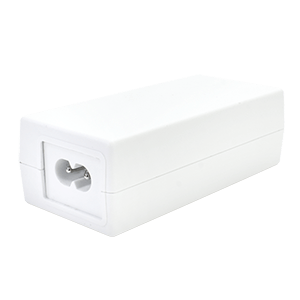

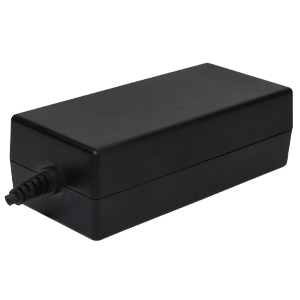

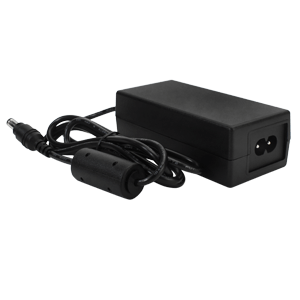

The SDM24-UD series is a compact 24 W medical desktop ac-dc power supply with a C8 inlet. It is certified to the medical 60601-1 safety standard and features over voltage and short circuit protection. These medical power supplies are a continuation of CUI's initiative to provide customers with global solutions for medical, dental, and home healthcare equipment.
Features
  • No-load power consumption < 0.1 W
  • Compact design
  • Designed for 2 x MOPP applications
Specifications
  • Power (W): 20 ~ 27
  • Output Voltage (VDC): 5 ~ 24
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40

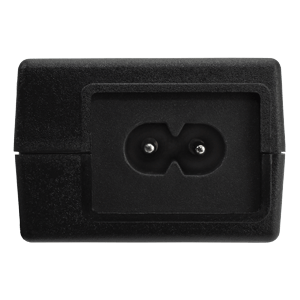

  • AC Inlet Type: 2 Prong (C8)
  • Safety Standards: 60601
  • Safety Approvals: CE, FCC, TUV, UL/cUL
  • Protections: Over Voltage, Short Circuit
  • RoHS Compliant: Yes
