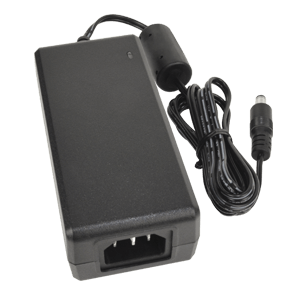

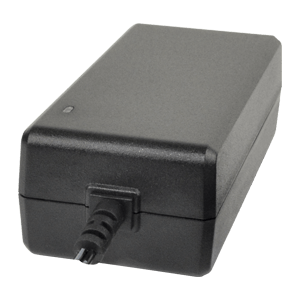

The SDI65-U series is a 65 W desktop ac-dc power supply w/ C14 inlet designed to meet the current US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Featuring a range of safety approvals and no-load power consumption less than 0.15 W, the SDI65-U desktop adapter is the ideal solution to keep you one step ahead of the latest power regulations.
Features
  • No-load power consumption < 0.15 W
  • Meets NRCan
  • ErP 2011 Phase II
  • Limited Power Source (LPS) rated
Specifications
  • Power (W): 60 ~ 65.52
  • Output Voltage (VDC): 12 ~ 56
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): -20 ~ +40, 0 ~ +40

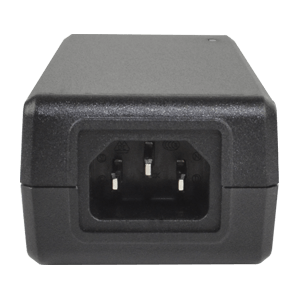

  • AC Inlet Type: 3 Prong (C14)
  • Region: Japan, North America
  • Safety Standards: 60950, 62368
  • Safety Approvals: CB, CE, FCC, PSE, UKCA, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
