SDI30C-UT Series
SDI30C-UT Series
SDI30C-UT Series
SDI30C-UT Series
SDI30C-UT Series
SDI30C-UT Series
SDI30C-UT Series

SDI30C-UT Series

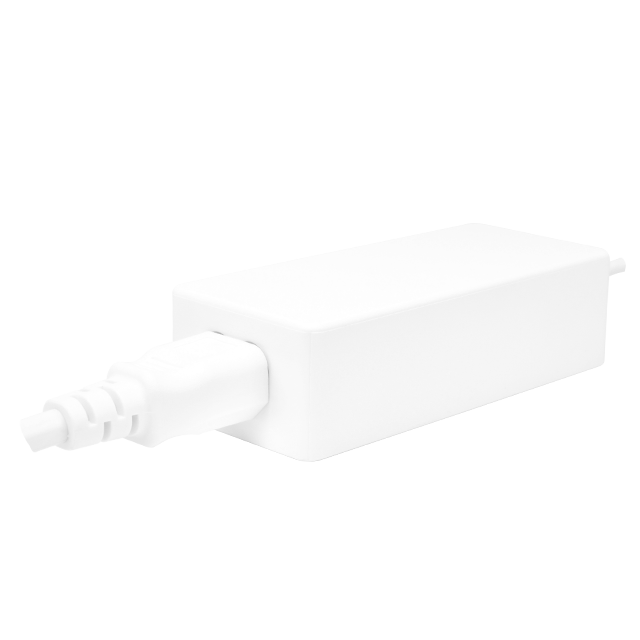

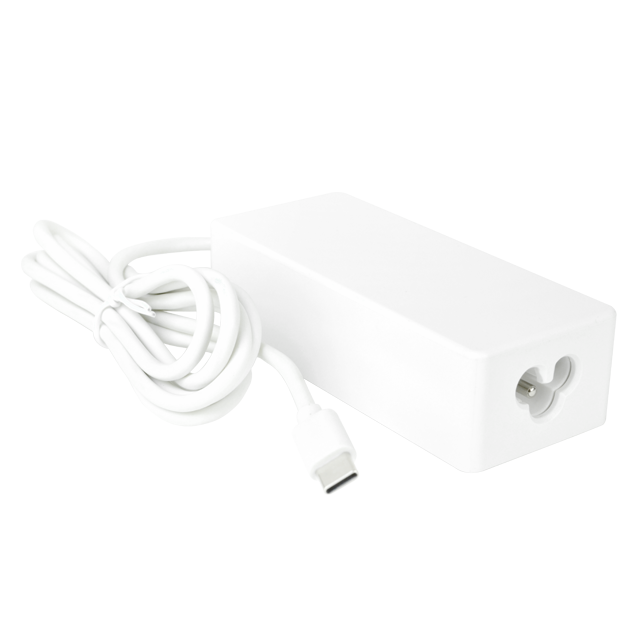

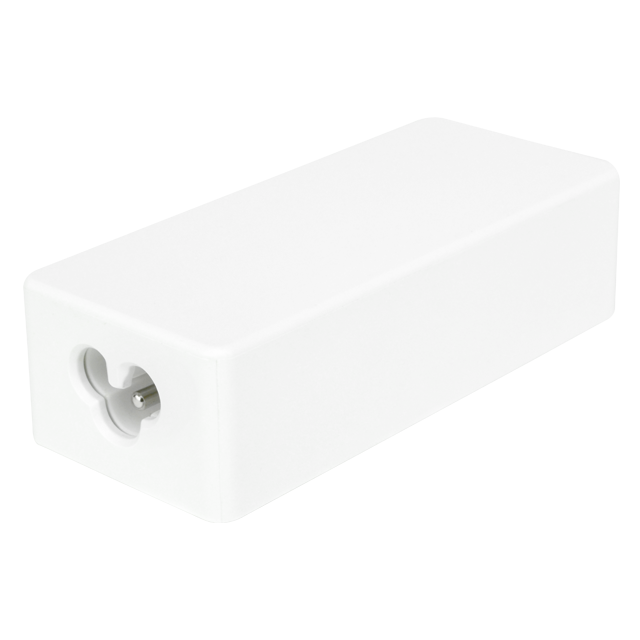

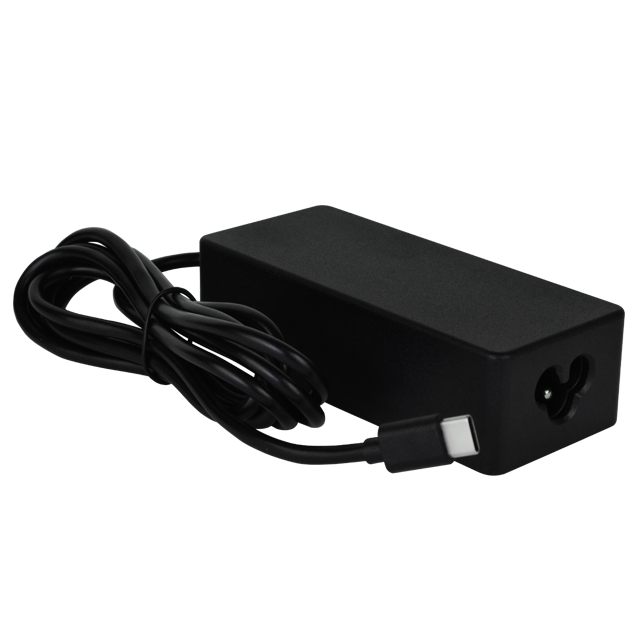

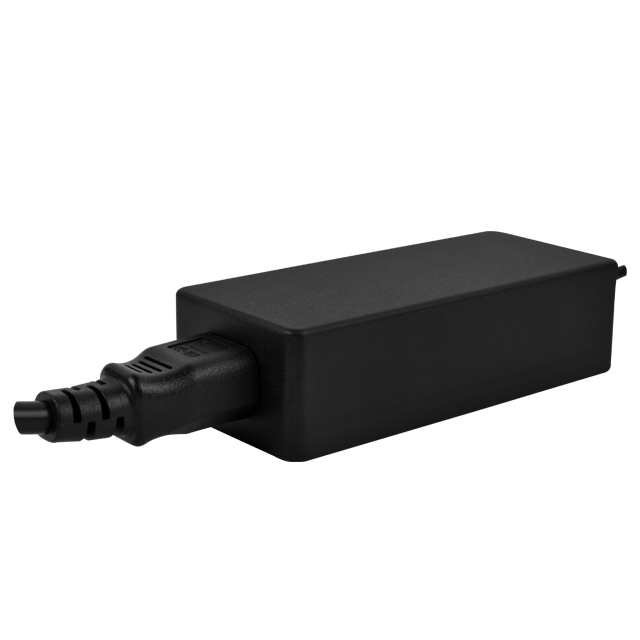

The SDI30C-UT series is a 30 W desktop ac-dc power supply with a three prong (C6) inlet designed to meet the current US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Certified for commercial grade applications, the SDI30C-UT series features a wide range of safety approvals and no load power consumption less than 0.1 W, making it the ideal solution to keep you one step ahead of the latest power regulations.
Features
  • USB Power Delivery (PD) 3.0
  • CISPR13 EN 55013 compliant
  • CISPR32 EN 55032 Class B compliant
Specifications
  • Power (W): 15 ~ 30
  • Output Voltage (VDC): 5 ~ 20
  • Input Voltage Range (VAC): 100 ~ 240
  • Operating Temperature Range (ºC): 0 ~ +40
  • AC Inlet Type: 3 Prong (C6)
  • Region: North America
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, UKCA, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
