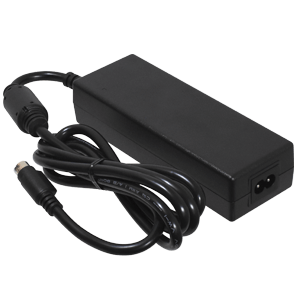

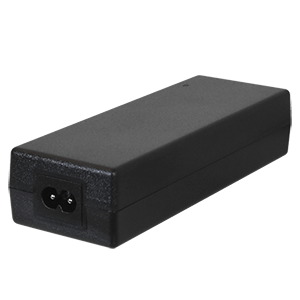

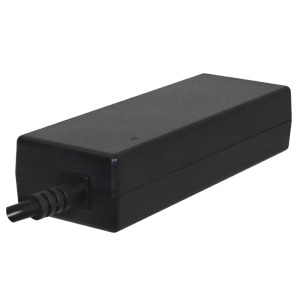

Thanks to GaN technology, the powerful SDI200G-UD series offers no-load power consumption as low as 0.21 W and meets the current US DoE Level VI efficiency standards, in addition to IEC 62368-1 standards for ICT and AV equipment. Featuring up to a 250% increase in power density, the SDI200G-UD series is a 200 W desktop ac-dc power supply with C8 inlet offering fast, efficient power in a compact package.
Features
  • Gallium nitride (GaN) Technology
  • Power factor correction (PFC)
  • Compact design
Specifications
  • Power (W): 192 ~ 200
  • Output Voltage (VDC): 12 ~ 56
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40

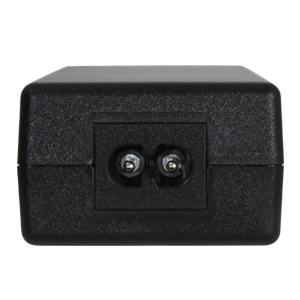

  • AC Inlet Type: 2 Prong (C8)
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, UKCA, UL/cUL
  • Protections: Over Current, Over Temperature, Over Voltage
  • RoHS Compliant: Yes
