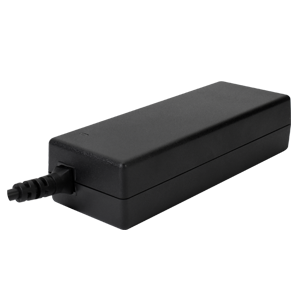

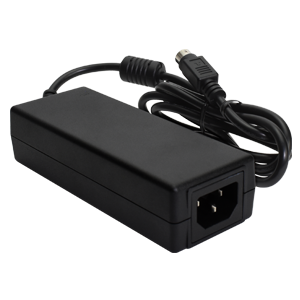

The SDI120G-U series is a 120 W desktop ac-dc power supply with C14 inlet offering fast, efficient power in a compact package. These models feature GaN technology, and meets the current US DoE Level VI efficiency standards. This series is ideal for IoT, consumer, and industrial applications.
Features
  • Gallium nitride (GaN) Technology
  • Compact design
Specifications
  • Power (W): 108 ~ 120
  • Output Voltage (VDC): 12 ~ 56
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): -20 ~ +40, 0 ~ +40

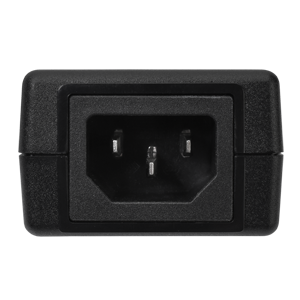

  • AC Inlet Type: 3 Prong (C14)
  • Region: Europe
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Power Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
