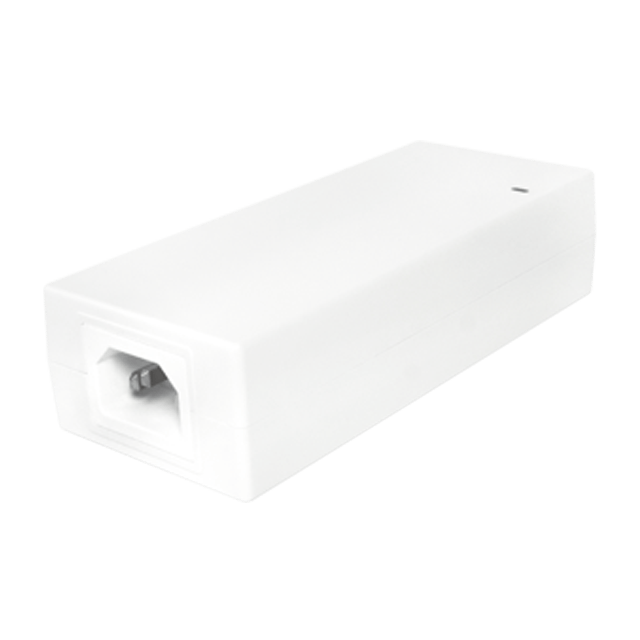

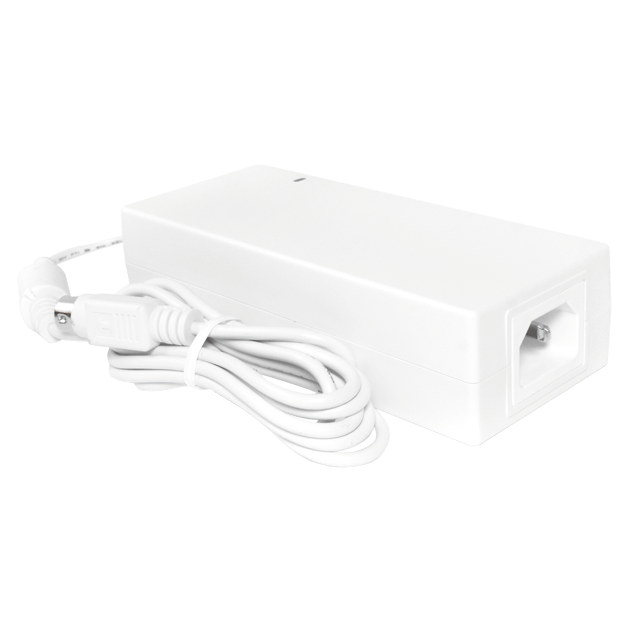

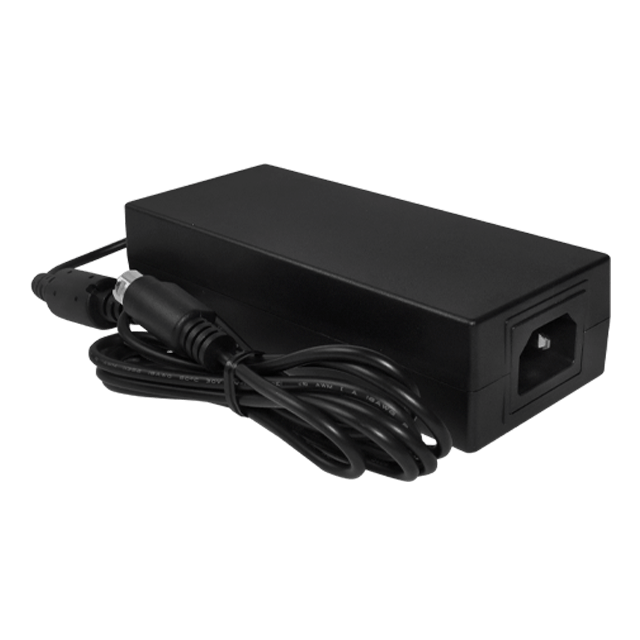

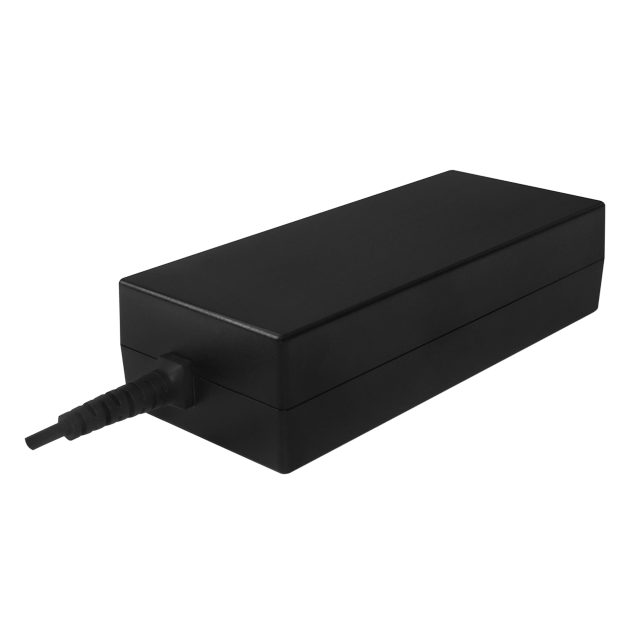

The SDI120B-U series is a 120 W desktop ac-dc power supply with a three prong (C14) inlet designed to meet the Level VI efficiency standards. Featuring active power factor correction, a range of safety approvals, and no-load power consumption less than 0.21 W, the SDI120B-U desktop adapter is the ideal solution to keep you one step ahead of the latest power regulations.
Features
  • Limited Power Source (LPS) rated
  • No-load power consumption < 0.21 W
Specifications
  • Power (W): 108 ~ 120
  • Output Voltage (VDC): 12 ~ 56
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): -20 ~ +40

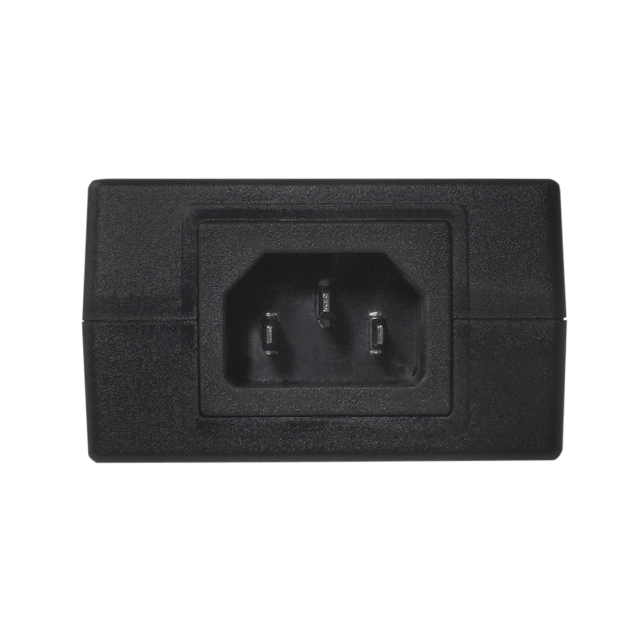

  • AC Inlet Type: 3 Prong (C14)
  • Region: Europe, North America
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
  • Protections: Over Current, Over Temperature, Over Voltage
  • RoHS Compliant: Yes
