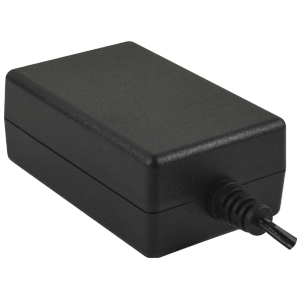

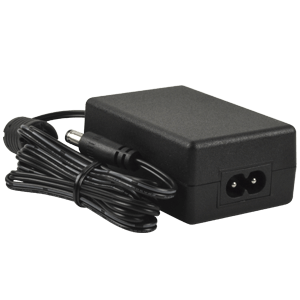

The SDI12-UD series is a 12 W desktop ac-dc power supply designed to meet the latest US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Featuring a range of safety approvals and no-load power consumption less than 0.075 W, the SDI12-UD desktop adapter is the ideal solution to keep you one step ahead of the latest power regulations.
Features
  • No-load power consumption < 0.075 W
  • Limited Power Source (LPS) rated
Specifications
  • Power (W): 10 ~ 12
  • Output Voltage (VDC): 5 ~ 24
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40

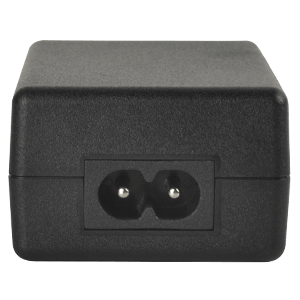

  • AC Inlet Type: 2 Prong (C8)
  • Region: Europe, North America
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, UKCA, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Power Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
