SUOT Series
SUOT Series

SUOT Series

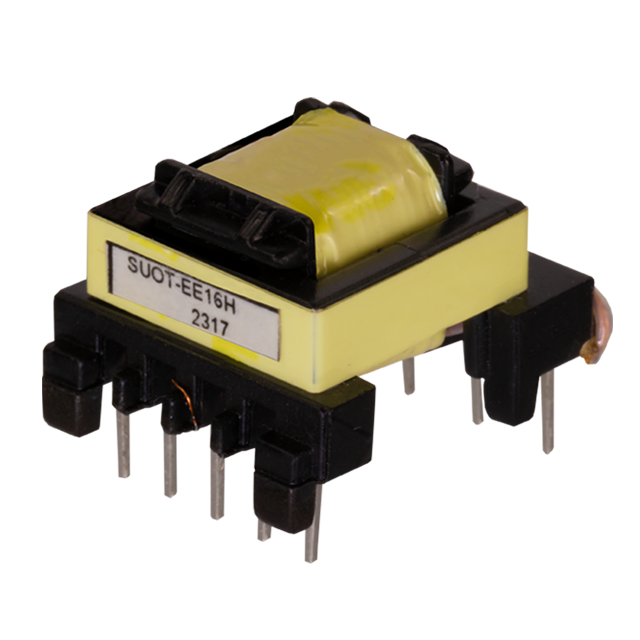

The SUOT Series of High Frequency Transformers are designed for universal Input Off-Line Switch Mode Power Supplies operating with multiple integrated control circuits and various types of switching elements. These through hole parts are reinforced insulated, IEC compliant and available in both horizontal and vertical printed circuit mount styles. Built around two distinct EE13 and EE16 geometric size platforms, the SUOT units deliver efficiently typical industry standard low voltage outputs at power levels of 3 W and 9 W.
Features
  • Horizontal & vertical PCB THT mounting platforms: EE13 and EE16
  • High Efficient Designs
  • Reinforced insulation
  • Min. creepage & clearance 6 mm
  • IEC 61558-2-16 compliance
Specifications
  • Power (W): 3 ~ 9
  • Voltage Input Range (VDC): 125 ~ 375
  • Voltage Input Range (VAC): 85 ~ 265
  • Dielectric Strength (Vrms): 4000
  • Switching Frequency (KHz): 132
  • Inductance - Primary (µH): 900 ~ 2800
  • Mounting Type: Through Hole Mount
  • Platform: EE13, EE16
  • Safety Approvals: 61558-2-16
  • RoHS Compliant: Yes
