SUOST Series
SUOST Series

SUOST Series

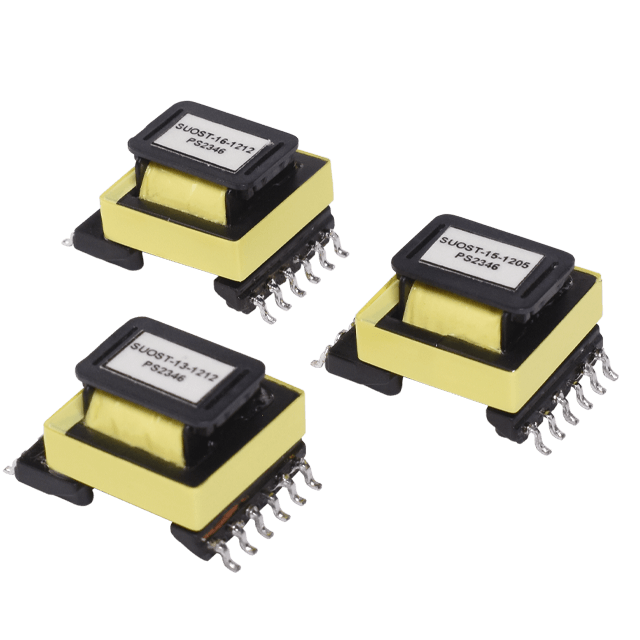

The SUOST series of High Frequency Transformers are designed for Universal Input On Line Switch Mode Power Supplies, operating with multiple integrated control circuits and various types of switching elements. These printed circuit mount parts are reinforced insulated, IEC compliant and available in horizontal surface mount technology styles. Built around an EE16/8/5 geometric size platform, the SUOST units deliver typical industry standard low voltage outputs, at power levels of 12 W, 13 W,15 W and 16 W.
Features
  • Horizontal SMD mounting platform: EE16/8/5
  • High efficiency designs
  • Reinforced insulation
  • Min. creepage & clearance 6.5 mm
  • Moisture sensitivity level MSL 1
  • IEC 61558-2-16 compliance
Specifications
  • Power (W): 12 ~ 16
  • Voltage Input Range (VDC): 125 ~ 375
  • Voltage Input Range (VAC): 85 ~ 265
  • Dielectric Strength (Vrms): 4000
  • Switching Frequency (KHz): 60 ~ 150
  • Inductance - Primary (µH): 1250 ~ 1500
  • Mounting Type: Surface Mount
  • Platform: 5 ~ 8
  • Safety Approvals: 61558-2-16
  • RoHS Compliant: Yes
