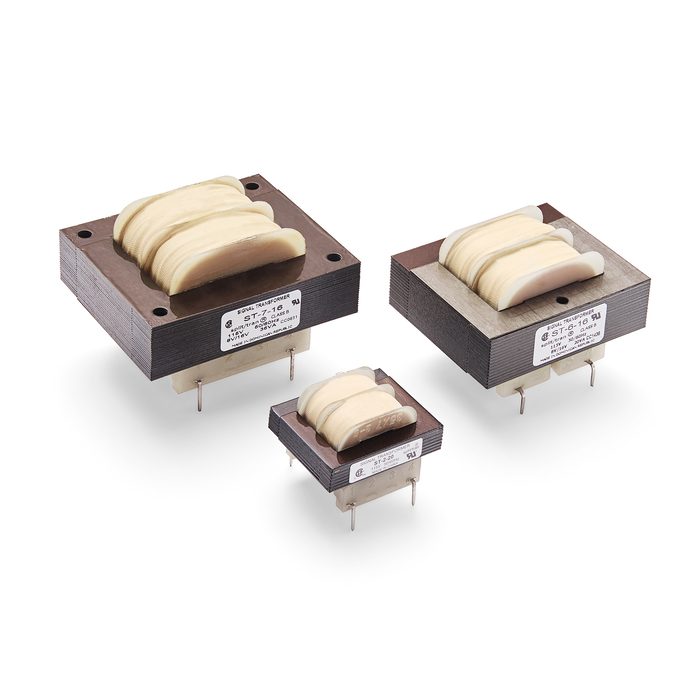

Signal's ST-6 Series transformers are 20VA single phase transformers in a through hole mount package. They are designed to convert 115V input to 10 ~ 120VCT in series or 5 ~ 60V parallel.
Features
  • Split Bobbin
  • Available in 120 standard configurations
  • UL 1446 (E66312)
  • UL Recognized to UL 506
  • Easily Modified
Specifications
  • Power (VA): 20
  • Voltage - Primary (V): 115
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 2500
  • Mounting Type: Through Hole Mount
  • Weight lbs (kg): 0.8 (0.36)
  • Dimensions L x W x H (in): 2.25 x 1.88 x 1.45
  • Dimensions L x W x H (mm): 57.2 x 47.8 x 36.8
  • Safety Standards: UL 5085
  • Safety Approvals: CSA, UL
  • RoHS Compliant: Yes
