SHE Series
SHE Series

SHE Series

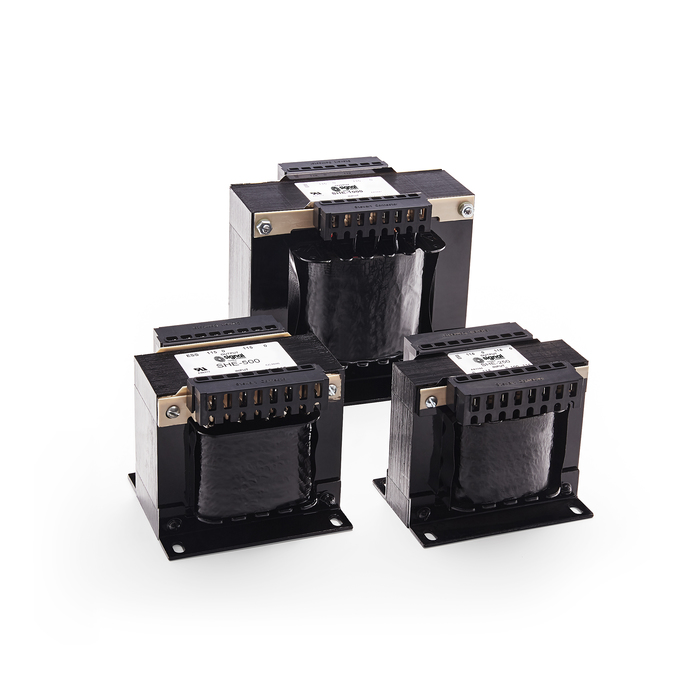

The SHE series of super High Efficiency transformers are specifically designed to reduce power operational costs, by utilizing optimal quality cores and conductor materials. The SHE transformers achieve superior ratings which address the overall trend to go "green" with cleaner, more efficient use of power.
Features
  • Efficiency 97.5 % Minimum
  • Low Temperature Rise
  • Meets UL, CSA, VDE and IEC
  • Leakage Current @ <50 micro Amps
  • Touch Safe Terminals (IP20 Type)
Specifications
  • Power (VA): 250 ~ 2500
  • Voltage - Primary (V): 100 ~ 230
  • Insulation Class: 180ºC, Class H
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Chassis Mount
  • Safety Standards: 61558, UL 5085
  • Safety Approvals: CSA, UL, VDE
  • RoHS Compliant: Yes
