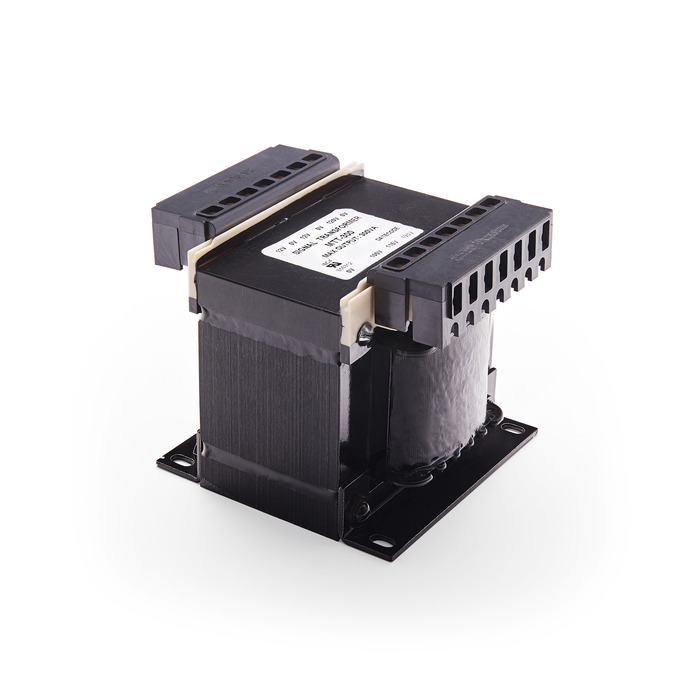

MTT Series
MTT Series

MTT Series

The versatile "Machine Builder" transformers are powered by 3 phase, 3 wire distribution systems having no neutral leg or by single phase. Multiple input taps allow voltage flexibility while the output provides voltages commonly required for control circuitry and ancillary equipment; 120V for fans, lighting, PLCs and service receptacles, as well as 12V & 24V commonly needed for relays and controls.
Features
  • Class F Insulation System - 155 ºC
  • Meets UL, CSA, VDE and IEC
  • Leakage Current < 100 micro Amps
  • Touch Safe Terminals (IP20 Type)
Specifications
  • Power (VA): 300 ~ 1000
  • Voltage - Primary (V): 100 ~ 480
  • Insulation Class: 155ºC, Class F
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Chassis Mount
  • Safety Standards: 61558, UL 5085
  • Safety Approvals: CSA, UL, VDE
  • RoHS Compliant: Yes
