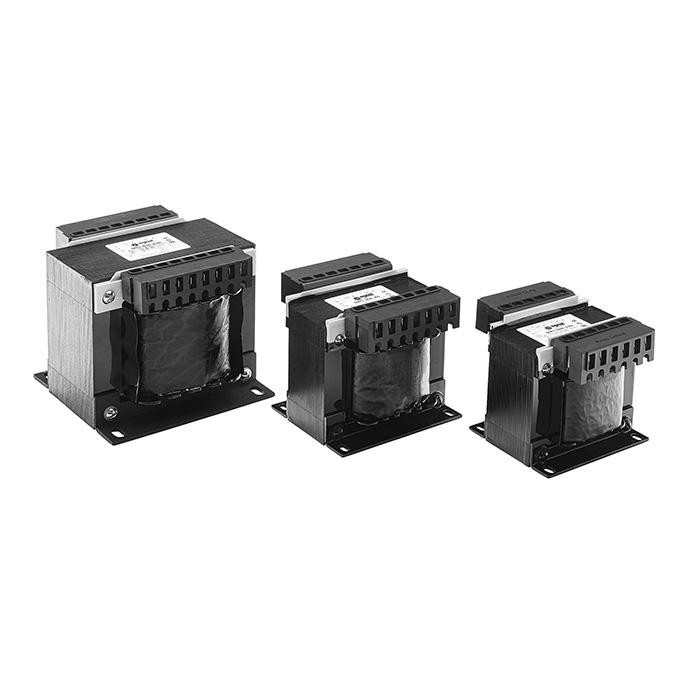

Signal's MPI-250 Series transformers are 250VA single phase transformers in a chassis mount package. They are designed to convert 100 ~ 230V input to 10 ~ 230VCT in series or 5 ~ 115V parallel.
Features
  • Electrostatic Shield - Solid copper full width foil
  • Touch-Safe terminals (IP20 type) offer a screw/binding clamp for hard wiring and a 3/16" & 1/4" Fast-On connection
Specifications
  • Power (VA): 250
  • Voltage - Primary (V): 100 ~ 230
  • Insulation Class: 155ºC, Class F
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 6.76 (3.07)
  • Dimensions L x W x H (in): 4.12 x 4.13 x 3.86
  • Dimensions L x W x H (mm): 104.6 x 104.9 x 98
  • Safety Standards: 61558, UL 5085
  • Safety Approvals: CSA, TUV, UL
  • RoHS Compliant: Yes
