LT120-50 Series
LT120-50 Series

LT120-50 Series

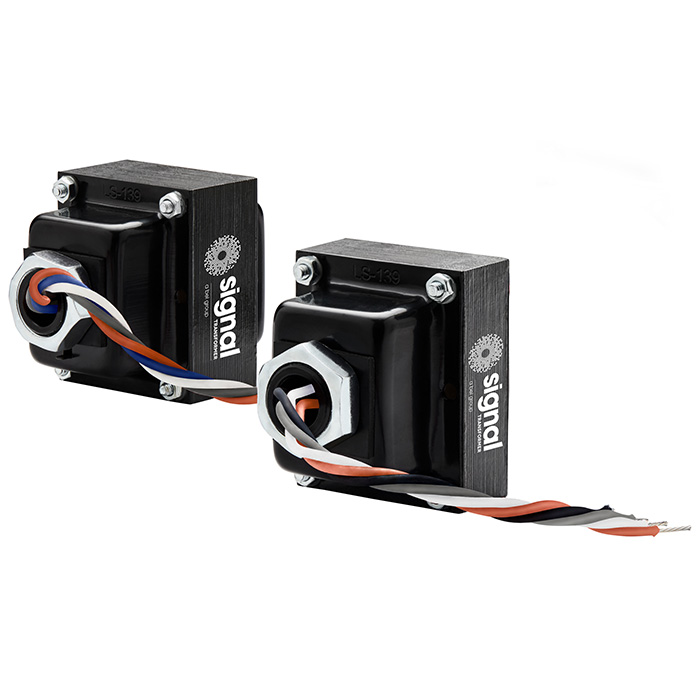

Signal's LT120-50 Series transformers are 50VA single phase transformers in a chassis mount package. They are designed to convert 120V input to 12V output.
Features
  • Highly effective
  • Low-cost design
  • Auto-resettable thermal protection
  • Rugged construction at a reasonable price
  • Corrosion-resistant surface coating that is environmentally resilient
  • Easy to mount and can be hardwired via standard 1/2" conduit hardwire and a straight box connection
Specifications
  • Power (VA): 50
  • Voltage - Primary (V): 120
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 2500
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 1.7 (0.77)
  • Dimensions L x W x H (in): 3.1 x 2.6 x 2.18
  • Dimensions L x W x H (mm): 78.7 x 66.04 x 55.37
  • Safety Standards: UL 5085
  • Safety Approvals: UL, UL/cUL
  • RoHS Compliant: Yes
