A41-43 Series
A41-43 Series

A41-43 Series

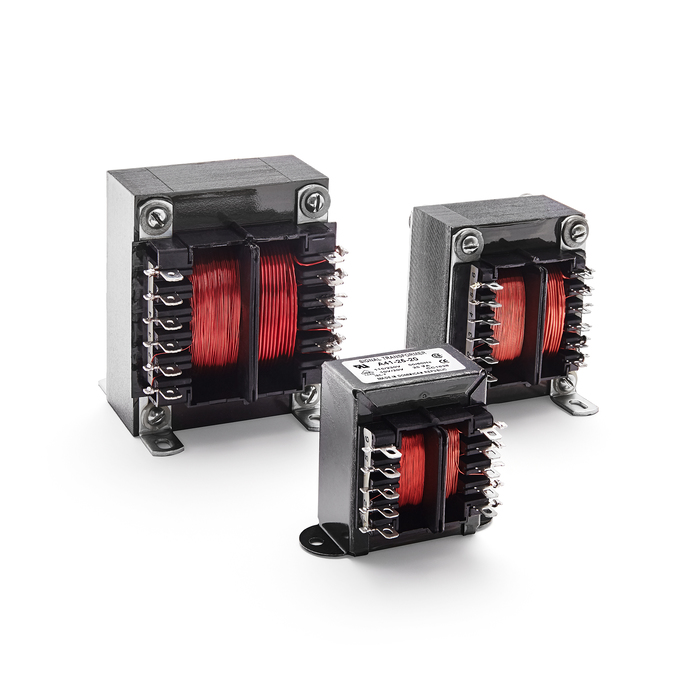

Signal's A41-43 Series transformers are 43VA single phase transformers in a chassis mount package. They are designed to convert 115 ~ 230V input to 10 ~ 36VCT in series or 5 ~ 115V parallel.
Features
  • Int'l Standards at a Low Cost
  • Flammability Rating UL 94-V0
  • Insulation Class F, 155 ºC
  • Agency Certified UL, CSA, VDE
  • Easily Modified
Specifications
  • Power (VA): 43
  • Voltage - Primary (V): 115 ~ 230
  • Insulation Class: 155ºC, Class F
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 1.6 (0.73)
  • Dimensions L x W x H (in): 3.12 x 2.14 x 2.68
  • Dimensions L x W x H (mm): 79.2 x 54.4 x 68.1
  • Safety Standards: 62368, UL 5085
  • Safety Approvals: CSA, UL, VDE
  • RoHS Compliant: Yes
