241-5 Series
241-5 Series

241-5 Series

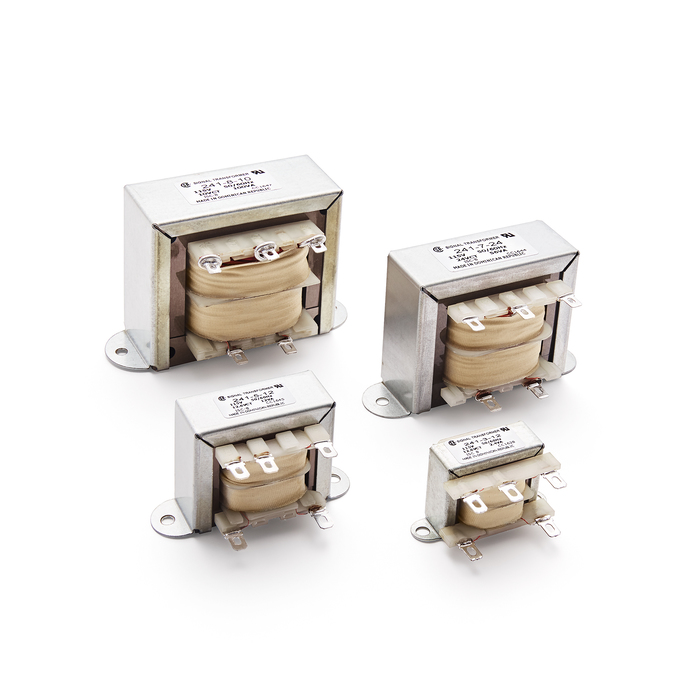

Signal's 241-5 Series transformers are 12VA single phase transformers in a chassis mount package. They are designed to convert 115V input to 10 ~ 56VCT in series.
Features
  • Secondary - Single center tapped secondary
  • Terminals - Solder lug/quick connect type terminals
  • Insulation - Class B (130ºC) UL 1446 E66312
Specifications
  • Power (VA): 12
  • Voltage - Primary (V): 115
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 2500
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 0.7 (0.32)
  • Dimensions L x W x H (in): 2.81 x 1.43 x 1.69
  • Dimensions L x W x H (mm): 71.4 x 36.3 x 42.9
  • Safety Standards: UL 5085
  • Safety Approvals: CSA, UL
  • RoHS Compliant: Yes
