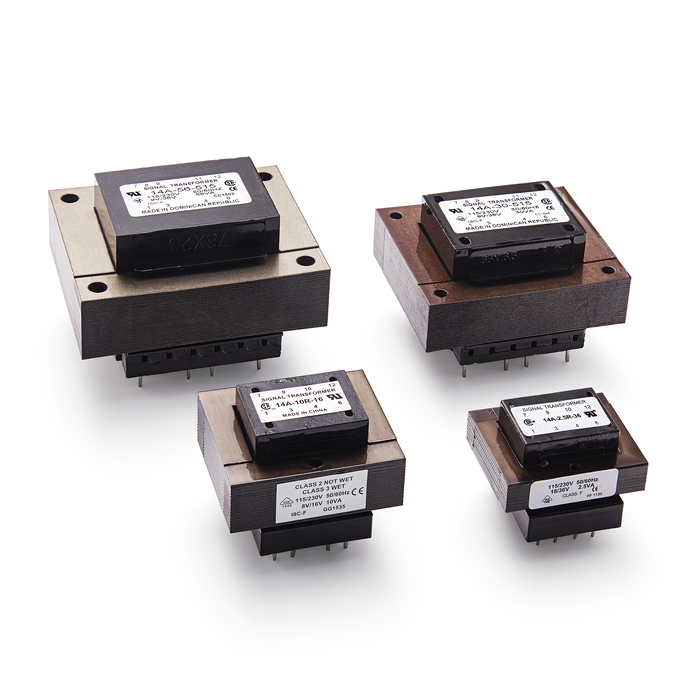

Signal's 14A-56 Series transformers are 56VA single phase transformers in a through hole mount package. They are designed to convert 115 ~ 230V input to 10 ~ 36VCT in series or 5 ~ 14V parallel.
Features
  • Over 2 Standard Configurations
  • UL Recognized to UL 506 / UL 5085-2
  • CSA Certified to C22.2 No. 66.1
  • VDE Certified to VDE 0805 Easily Modified
Specifications
  • Power (VA): 56
  • Voltage - Primary (V): 115 ~ 230
  • Insulation Class: 155ºC, Class F
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Through Hole Mount
  • Weight lbs (kg): 1.7 (0.77)
  • Dimensions L x W x H (in): 3 x 2.5 x 1.81, 3 x 2.5 x 1.83
  • Dimensions L x W x H (mm): 76.2 x 63.5 x 46, 76.2 x 63.5 x 46.5
  • Safety Standards: 62368, UL 5085
  • Safety Approvals: CSA, UL, VDE
  • RoHS Compliant: Yes
