SPoE Power Over Ethernet Transformer
SPoE Power Over Ethernet Transformer

SPoE Power Over Ethernet Transformer

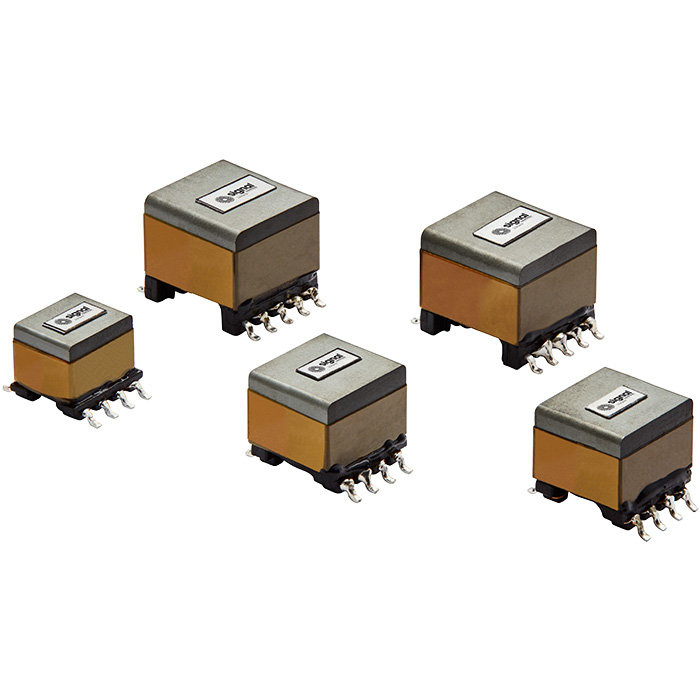

The SPoE Series is a family of high-frequency SMD transformers for Power over Ethernet (PoE) Power Device equipment (PD) intended for IEEE802.3AF and IEEE802.3AT requirements. The SPoE Series are used within a PD design for the purpose of stepping down the voltage and providing isolation in the circuit. Examples of applications for this series include VOIP phones, IP Cameras, wireless access points, IPTV decoders, network routers, and other low-power PoE devices that accept power from a PSE injector, midspan, or PoE switch.
Features
  • EP7, EP10 & EP13 Platforms
  • Flyback Circuit Topology
Specifications
  • Power (W): 3 ~ 27
  • Vout 1 (V): 3.3 ~ 15
  • Inductance - Primary (µH): 20.4 ~ 500
  • DCR - Primary (mOhm): 58 ~ 1750
  • Core Size: EP10, EP13, EP7
  • Mounting Type: Surface Mount
