SCS Series
SCS Series

SCS Series

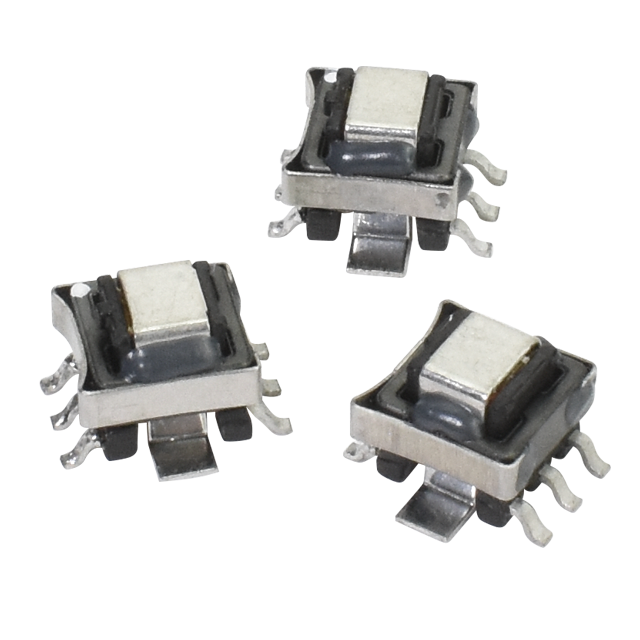

The SCS Series is an entirely new line in our high frequency transformer product line offering. These surface mount components are used for detecting the current passing directly through an applications conductor. They can accurately sense current flow in power supply circuits through a non-invasive way, along with safety and control circuits. The current sensor can be used in a variety of applications including feedback control, load drop/shutdown protection, safety/control circuits and power supply DC to DC converters/chargers. They present a cost effective low loss approach to measuring currents in high frequency voltage regulators and switch mode power supplies.
Features
  • Very low DC resistance
  • Different turns ratios
  • Designed for automatic pick and place
Specifications
  • Current - Primary (A): 10
  • DCR - Primary (mOhm): 0.7
  • Inductance - Secondary (µH): 80 ~ 3000
  • Dielectric Strength (Vrms): 500
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
