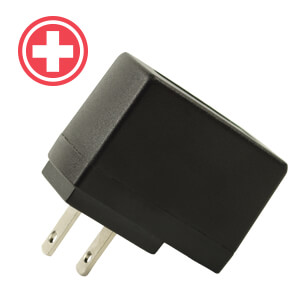

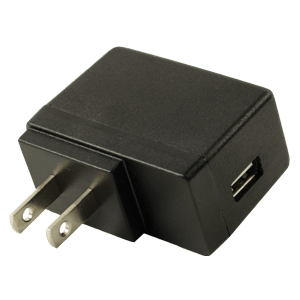

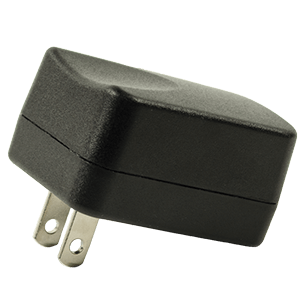

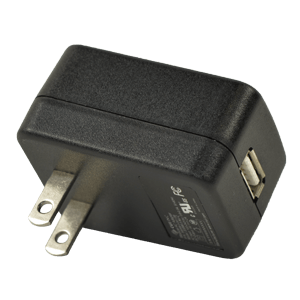

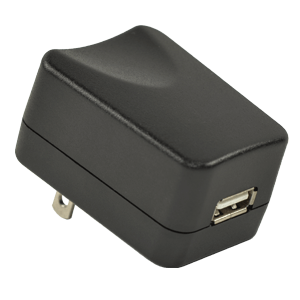

The SWM6-N-USB series is a 6 W North American medical wall power adapter with an integrated USB connector certified to the medical 60601-1 edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements. Featuring high efficiency and no-load power consumption less than 0.1 W, this ac-dc power supply is a continuation of CUI initiative to provide customers with the most efficient power solutions for medical, dental, and home healthcare equipment.
Features
  • No-load power consumption < 0.1 W
  • 60601-1-2 4th edition EMC collateral standard approvals
  • Designed for 2 x MOPP applications
Specifications
  • Power (W): 6
  • Output Voltage (VDC): 5 ~ 12
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • Region: North America
  • Safety Standards: 60601
  • Safety Approvals: FCC, PSE, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
