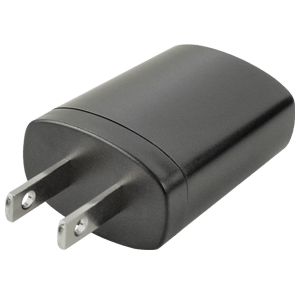

The SWI5-N-USB series is a 5 W US wall power adapter designed to meet the current US DoE Level VI efficiency standards. Featuring an integrated USB connector and an ultra-compact design, this ac-dc power supply is a continuation of CUI's initiative to provide customers with the most efficient power solutions utilizing the latest in green power technology.
Features
  • No-load power consumption < 0.075 W
  • Ultra-compact case

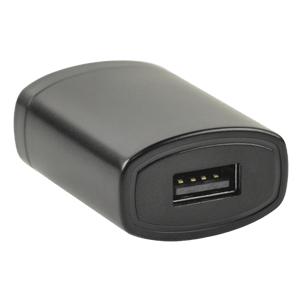

  • Integrated USB Type A connector
  • Limited Power Source (LPS) rated
Specifications
  • Power (W): 5
  • Output Voltage (VDC): 5
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • Region: North America
  • Safety Standards: 60950, 62368
  • Safety Approvals: FCC, PSE, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
