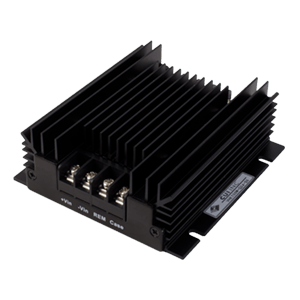

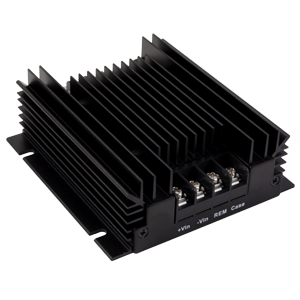

The VHK75W series is a rugged chassis mount DC-DC converter featuring an integrated heat sink for improved thermal performance. The aluminum heat sink allows the unit to operate at higher temperatures with a minimal amount of air flow. With an ultra-wide 4:1 input range, these high power DC-DC converters are ideal when being driven from a fluctuating device such as a battery which exhibits wide voltage swings during charging and discharging conditions.
Features
  • 4:1 input range
  • Single regulated output
  • Rugged metal enclosure with integrated heat sink
  • Remote on/off control
  • Output trim
  • Remote sense
Specifications
  • Power (W): 50 ~ 75
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 1500
  • Isolated: Yes
  • RoHS Compliant: Yes
