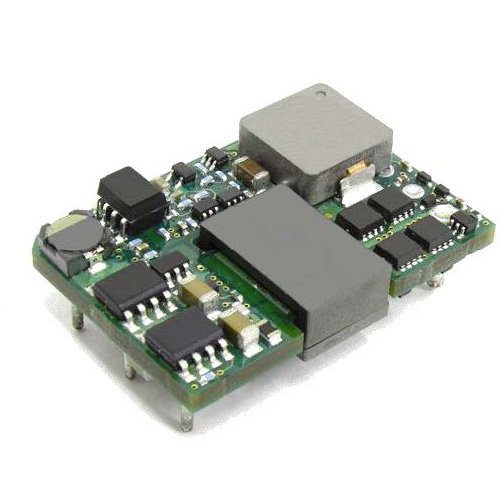

The new SSQE48T25012 DC-DC converter is an open frame sixteenth-brick DC-DC converter that conforms to the Distributed Open Standards Architecture (DOSA) specifications. The converter operates over an input voltage range of 36 to 75 VDC, and provides a tightly regulated output voltage with an output current up to 25 A. The output is fully isolated from the input and the converter meets Basic Insulation requirements permitting a positive or negative output configuration. The converter is constructed using a single-board approach with both planar and discrete magnetics. The standard feature set includes remote On/Off (positive or negative logic), input undervoltage lockout, output overvoltage, overcurrent, and short circuit protections, output voltage trim, and overtemperature shutdown with hysteresis. With standard pinout and trim equations and excellent thermal performance, the SSQE48T25012 converters can replace in most cases existing eighth-brick converters. Inclusion of this converter in a new design can result in significant board space and cost savings.
Features
  • Industry-standard DOSA pinout
  • On-board input differential LC-filter
  • Start-up into pre-biased load
  • Fully protected (OTP, OCP, OVP, UVLO)
  • Remote ON/OFF positive or negative logic option
Specifications
  • Power (W): 30
  • Input Voltage Range (VDC): 36 ~ 75
  • Output Voltage (VDC): 1.2
  • Operating Temperature Range (ºC): -40 ~ +85
  • Standard Footprint: 1
  • Isolation (VDC): 2250
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, Nemko
  • RoHS Compliant: Yes
