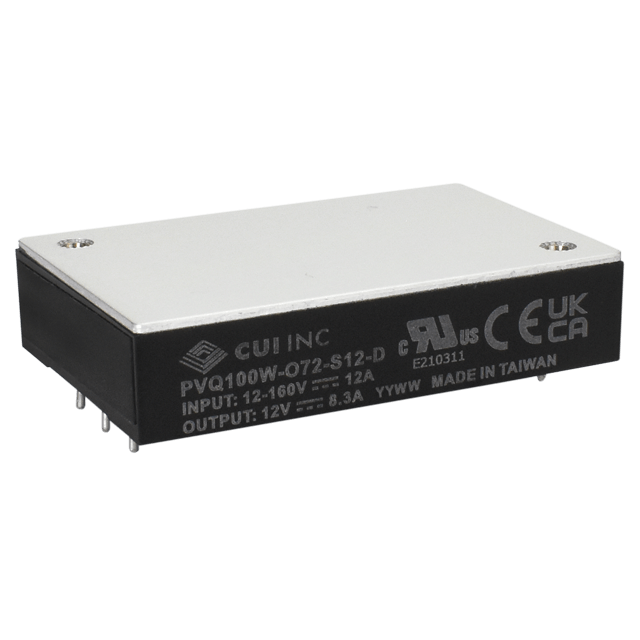

The PVQ100W-D series is a 100 W, quarter brick DC-DC converter housed in a fully encapsulated case. These converters additionally offer EN 62368-1 certification, remote on/off control, and an ultra-wide 14:1 input range. The PVQ100W-D series is ideally suited for data, telecom, and industrial applications where a large amount of power is needed in a compact package.
Features
  • 14:1 input range
  • Single regulated output
  • Industry standard quarter brick package
  • Meets EN 50155 with external filter
  • Remote on/off control
Specifications
  • Power (W): 100
  • Input Voltage Range (VDC): 12 ~ 160
  • Output Voltage (VDC): 5 ~ 54
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 1
  • Isolation (VDC): 4200
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
