PST75W Series
PST75W Series
PST75W Series

PST75W Series

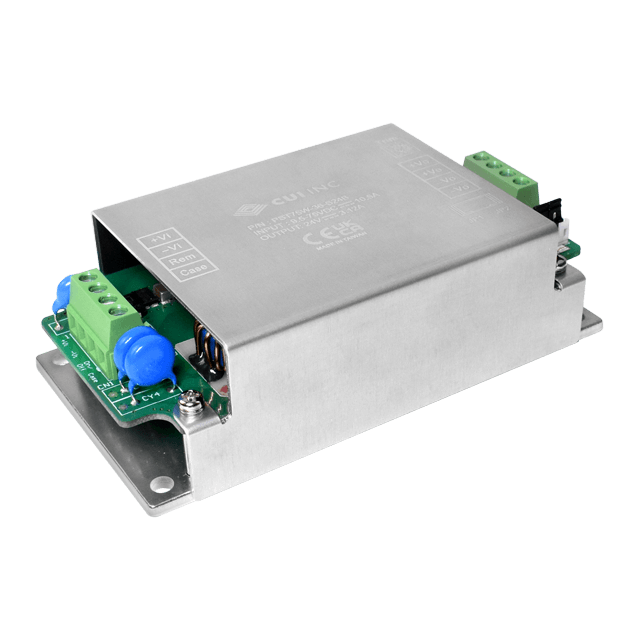

The PST75W series is a 75 W isolated output DC-DC converter offering 4200 Vdc isolation and an 8:1 input range. Housed in an encapsulated, chassis mount package, the series carries an extended operating temperature range of -40 up to +105ºC, a built-in EMI filter and baseplate, and remote on/off control, making it a reliable option for EV charging, industrial, railway, and remote telecom applications.
Features
  • 8:1 input range
  • Single regulated output
  • IEC/EN 62368 Certified
  • Built-in EMI filter and baseplate
  • Remote on/off control
Specifications
  • Power (W): 75
  • Input Voltage Range (VDC): 9.5 ~ 75
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: DIP8
  • Isolation (VDC): 4200
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
