PRQE75W-D Series
PRQE75W-D Series
PRQE75W-D Series

PRQE75W-D Series

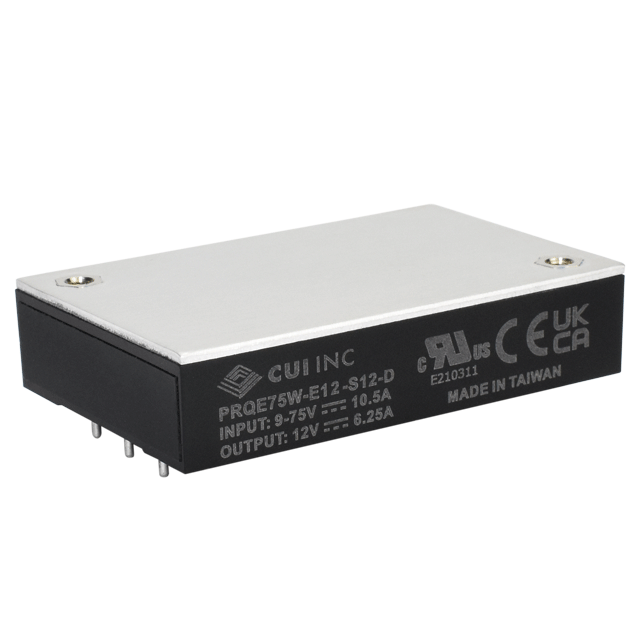

The PRQE75W-D series is a 75 W quarter-brick DC-DC converter housed in a fully encapsulated case. These high-power DC-DC converters offer EN 62368-1 certification, up to 90% efficiency, and an ultra-wide 8:1 input range in an industry standard quarter brick package. Ideal for railway, renewable energy, and industrial applications where a large amount of power is necessary in a compact package.
Features
  • 8:1 input range
  • Single regulated output
  • Efficiency up to 90%
  • Industry standard quarter brick package
  • Meets EN 50155 with external filter
  • Remote on/off control
Specifications
  • Power (W): 74.8 ~ 75
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 1
  • Isolation (VDC): 3000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
