PRFE20W-D Series

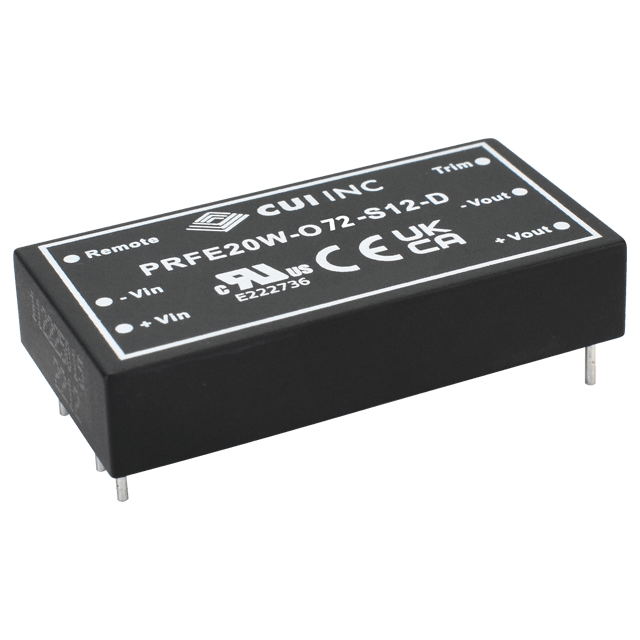

The PRFE20W series is a 20 W DC-DC converter designed specifically to meet the needs of railway applications. All models are designed to meet EN 45545, EN 50155, and EN 55035 standards while offering a host of features, including an 18:1 input range, single/dual regulated outputs, and efficiencies up to 90%.
Features
  • Single/dual regulated outputs
  • Suited for negative output applications (dual output models)
  • Remote on/off control
  • Efficiency up to 90%
  • Industry standard 2" x 1" package
Specifications
  • Power (W): 20
  • Input Voltage Range (VDC): 8.5 ~ 160
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 2" x 1"
  • Isolation (VDC): 4200
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
