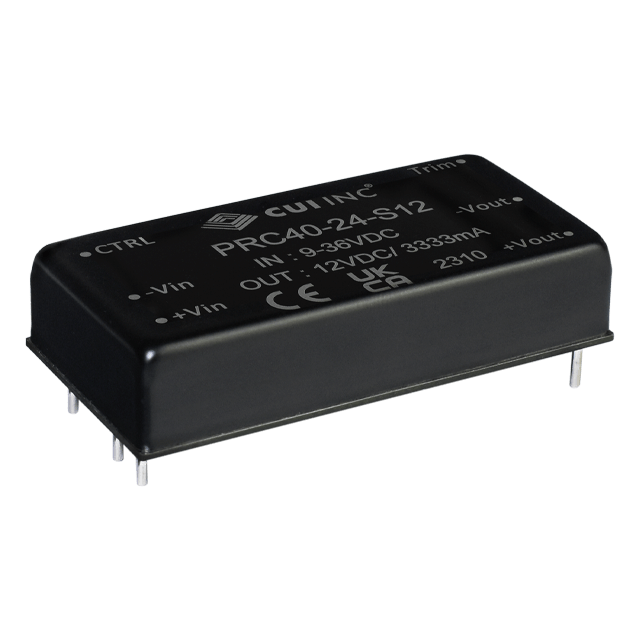

The PRC40 Series is a single/dual regulated 40 W DC-DC converter designed to meet the needs of commercial, telecom, and other industrial applications. All models meet EN 62368 standards and offer a host of features, including remote on/off control, output voltage trim, as well as a robust operating temperature range.
Features
  • 4:1 input range
  • Single/dual regulated outputs
  • Remote on/off control
  • Output Voltage Trim
Specifications
  • Power (W): 33 ~ 40
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 2" x 1"
  • Isolation (VDC): 1600
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
