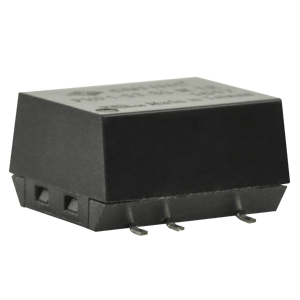

The PHP1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 76% and 2,000 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ÂșC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
Features
  • 1:1 input range
  • Single unregulated output
  • Industry standard 8 pin SMT package
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 2.97 ~ 16.5
  • Output Voltage (VDC): 5 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: SMT8
  • Isolation (VDC): 2000
  • Isolated: Yes
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
