PDQ10-D Series
PDQ10-D Series
PDQ10-D Series

PDQ10-D Series

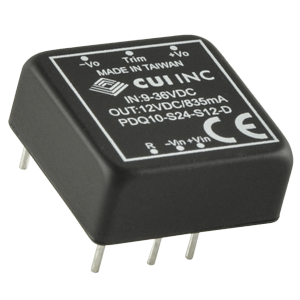

The PDQ10-D Series is an encapsulated 10 W isolated DC-DC converter packaged in an industry standard 1” x 1” footprint. These low-profile modules feature a 4:1 input voltage range and offer up to 86% efficiency. Housed in a compact DIP package and featuring a wide -40 to +105ºC operating temperature range, the series is suitable for convection-cooled equipment. Target applications for the PDQ10-D Series include microcontrollers, datacom, telecom, remote sensor systems and portable electronics.
Features
  • Single/dual regulated outputs
  • Industry standard 1" x 1" package
  • 4:1 input range
  • Five-sided shielded case
  • Remote on/off control
  • Output trim
Specifications
  • Power (W): 8.25 ~ 10
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 1" x 1"
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Approvals: CE
  • RoHS Compliant: Yes
