PCN1-M Series
PCN1-M Series
PCN1-M Series

PCN1-M Series

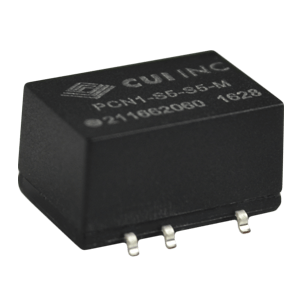

The PCN1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 81% and 1,500 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ÂșC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
Features
  • 1:1 input range
  • Single/dual unregulated outputs
  • SMT package
  • Low ripple and noise
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 4.5 ~ 13.2
  • Output Voltage (VDC): 5 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100
  • Isolation (VDC): 1500
  • Isolated: Yes
  • RoHS Compliant: Yes
