P78A-0500 Series
P78A-0500 Series
P78A-0500 Series

P78A-0500 Series

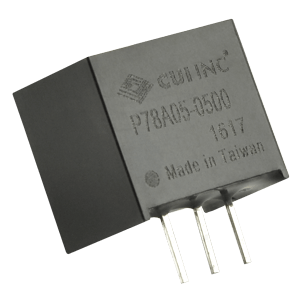

The compact P78A-0500 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
Features
  • Pin compatible with LM78XX linear regulators
  • Wide input voltage range
  • Low ripple and noise
  • Efficiency up to 95%
Specifications
  • Power (W): 1.65 ~ 2.5
  • Input Voltage Range (VDC): 6 ~ 28
  • Output Voltage (VDC): 3.3 ~ 5
  • Operating Temperature Range (ºC): -40 ~ +85
  • Standard Footprint: SIP3
  • Isolation (VDC): 0
  • Isolated: No
  • RoHS Compliant: Yes
