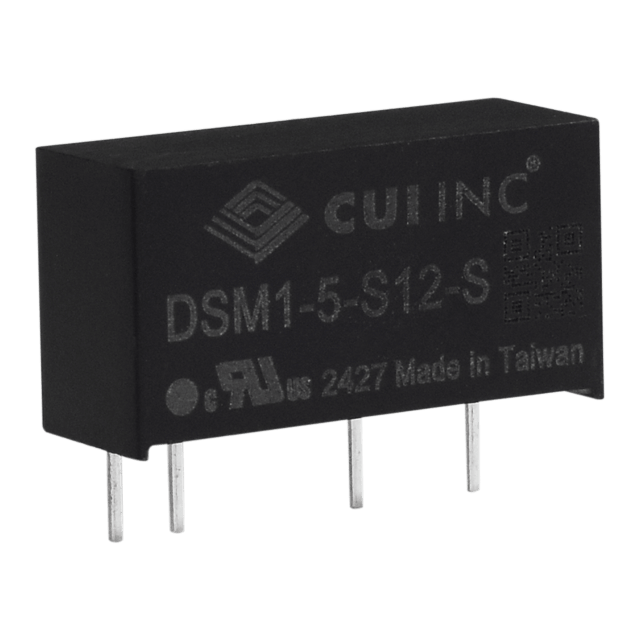

The DSM1-S Series is a family of unregulated DC-DC converter modules housed in an industry standard 7-pin SIP package. These low power DC-DC converters offer 4,000 Vdc isolation, an extended -40 to 100ºC operating temperature range with derating, UL/cUL 62368-1 certification, and a single/dual unregulated output making it an ideal solution for consumer electronics, smart home appliances, and small-scale automation applications.
Features
  • 1:1 input range
  • Single/dual unregulated outputs
  • Industry standard 7 pin SIP package
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 4.5 ~ 26.4
  • Output Voltage (VDC): 3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: SIP7
  • Isolation (VDC): 4000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
