DQS1-S Series
DQS1-S Series
DQS1-S Series

DQS1-S Series

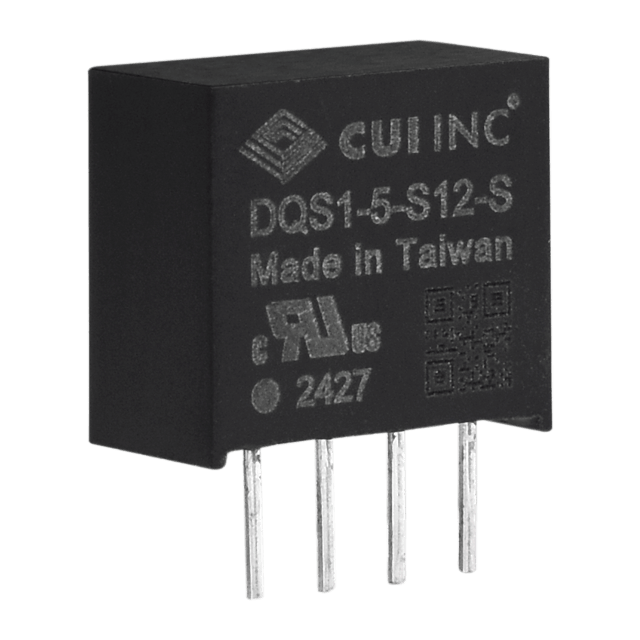

The DQS1-S Series is a family of unregulated DC-DC converter modules housed in a compact 4-pin SIP package. These low power DC-DC converters offer 1,000 Vdc isolation, short circuit protection, UL/cUL 62368-1 certification, and a 1 W isolated output making it an ideal solution for consumer electronics, digital or analog systems, and small-scale automation applications.
Features
  • 1:1 input range
  • Single unregulated output
  • Industry standard 4 pin SIP package
  • 1000 Vdc Isolation
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 2.97 ~ 26.4
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +90
  • Standard Footprint: SIP4
  • Isolation (VDC): 1000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
