DQQ3-S Series
DQQ3-S Series
DQQ3-S Series

DQQ3-S Series

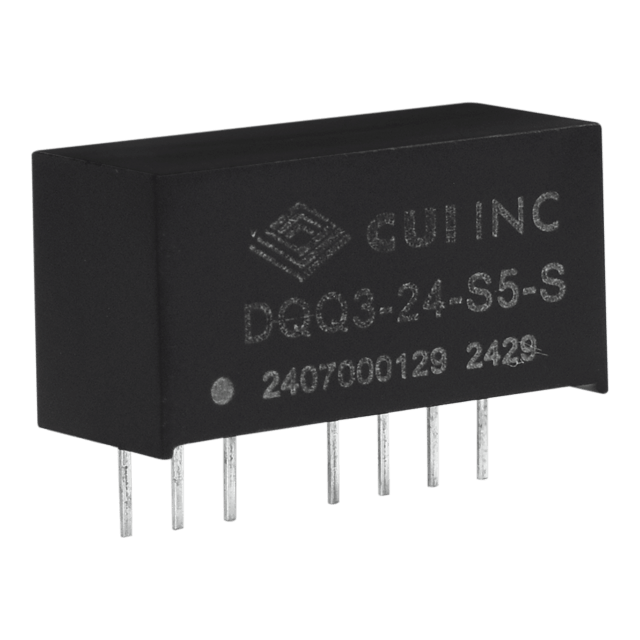

The DQQ3-S Series is a family of 3 W DC-DC converter modules housed in a SIP package with a 4:1 input ratio. These low power DC-DC converters offer 1,500 Vdc isolation, short circuit protection, EN/IEC 62368-1 certification, and a 3 W isolated output making it an ideal solution for consumer electronics, digital or analog systems, and small-scale automation applications.
Features
  • 4:1 input range
  • Single/dual regulated outputs
  • Remote on/off control
  • No tantalum capacitor inside
  • EN55032 Class A & Class B with external components
Specifications
  • Power (W): 3
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100, -40 ~ +85
  • Standard Footprint: SIP8
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
