0RQP-X5M12D Series
0RQP-X5M12D Series

0RQP-X5M12D Series

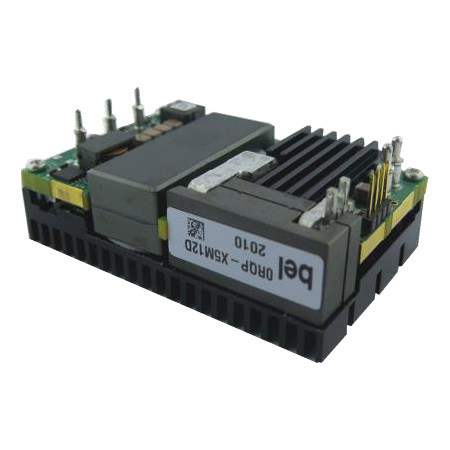

The 0RQP-X5M12D is an isolated DC-DC converter that provides up to 1500 W of output power from a nominal 54 VDC input. This converter is intended to provide isolation and step down to generate a regulated intermediate bus for the purpose of powering non-isolated Point-of-Load (POL) converters. This converter is provided in a 1/4 brick package.
Features
  • I/O Isolation Voltage: 500 V
  • Single
  • Type input Voltage: 54 V
Specifications
  • Power (W): 1500
  • Input Voltage Range (VDC): 48 ~ 60
  • Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): -20 ~ +90
  • Standard Footprint: 1
  • Isolation (VDC): 500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CSA, Nemko
  • RoHS Compliant: Yes
