VOF-S12C Series
VOF-S12C Series
VOF-S12C Series

VOF-S12C Series

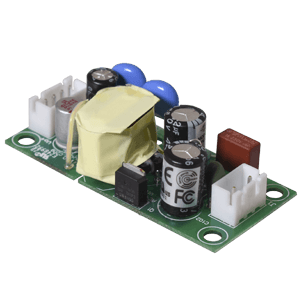

The VOF-S12C family of economical open frame AC-DC power supplies is available in five different voltage configurations ranging from 5~24 volts dc. Offering low no-load power consumption, the VOF's efficient performance, compact size and competitive pricing make these open frame power supplies ideally suited for a range of consumer, industrial, and ITE applications.
Features
  • CISPR32 EN 55032 Class B compliant
  • No-load power consumption < 0.075 W
Specifications
  • Power (W): 10 ~ 12
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +50
  • Cooling Type: Convection
  • Safety Standards: 62368
  • Safety Approvals: Nemko, UL/cUL
  • RoHS Compliant: Yes
