VOF-10B Series
VOF-10B Series
VOF-10B Series

VOF-10B Series

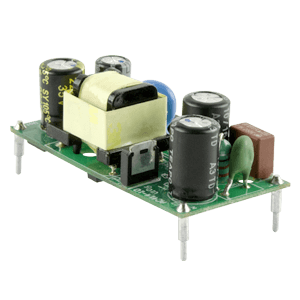

The VOF-10B series is a family of open frame AC-DC power supplies housed in a compact board mount package. Featuring 4 kVac isolation and no-load power consumption less than 100 mW, these 10 W open frame modules are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
Features
  • Compact footprint
  • 4000 Vac isolation
  • No-load power consumption < 0.1 W
Specifications
  • Power (W): 10 ~ 10.8
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): -25 ~ +50
  • Cooling Type: Convection
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
