VMS-40 Series
VMS-40 Series
VMS-40 Series

VMS-40 Series

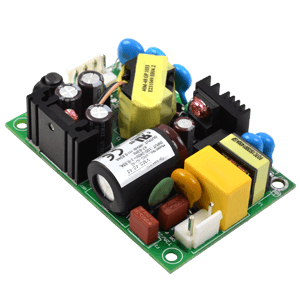

The VMS-40 series is a high density AC-DC power supply designed for use in a range of medical and dental products, certified to the IEC 60601-1 3rd edition standard for 2 x MOPP applications. Featuring no-load power draw of less than 0.3 W and efficiency up to 88%, these medical power supplies are ideal for medical designs seeking to reduce stand-by and overall power consumption.
Features
  • Industry standard 2” x 3” footprint
  • Designed for 2 x MOPP applications
  • No-load power consumption < 0.3 W
  • Efficiency up to 88%
Specifications
  • Power (W): 19.8 ~ 40
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 3.3 ~ 48
  • Operating Temperature Range (ºC): 0 ~ +40, 0 ~ +50
  • Cooling Type: Convection
  • Safety Standards: 60601
  • Safety Approvals: CE, TUV, UL/cUL
  • RoHS Compliant: Yes
