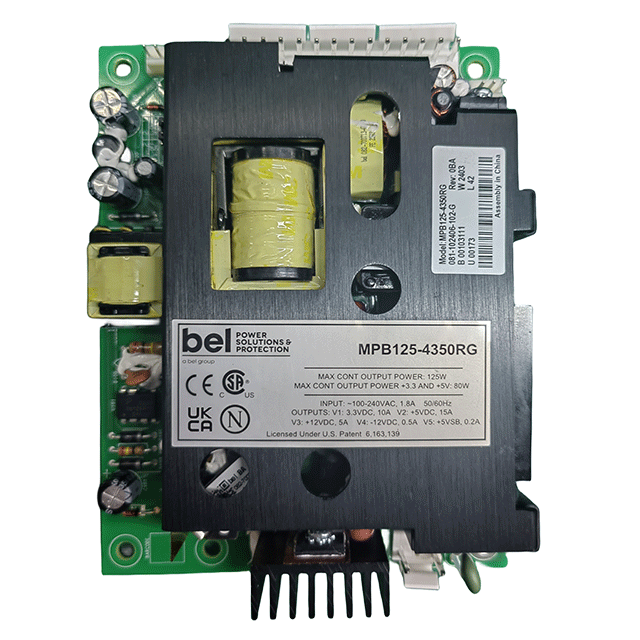

MPB125 (Multiple Output) Series
MPB125 (Multiple Output) Series

MPB125 (Multiple Output) Series

The MPB125 Series incorporates patented high efficiency circuitry, high power density and active Power Factor Correction (PFC) to meet the requirements of networking and data communications systems, as well as commercial and industrial configurations. Dual output units deliver a regulated main output plus a second 12V output for fans or other system functions. Multiple output models provide tightly regulated DC power in a variety of configurations. The MPB125 is rated for convection as well as forced-air cooling. Full output power is available with as few as 5 Cubic Feet per Minute (CFM) forced-air cooling with the exception of the MPB125-2003DG which need only 10 CFM for full power. Optional remote on/off with standby power is also provided (see Options). The MPB125 product line is approved to the latest international regulatory standards, and displays the CE Mark.
Features
  • RoHS Lead Free and Lead-Solder-Exempt Products are Available
  • High Power Density
  • Main Output Remote Sense
  • Power Good signals
  • CE Marked to Low Voltage Directive
Specifications
  • Power (W): 125
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 3.3 ~ 12
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
