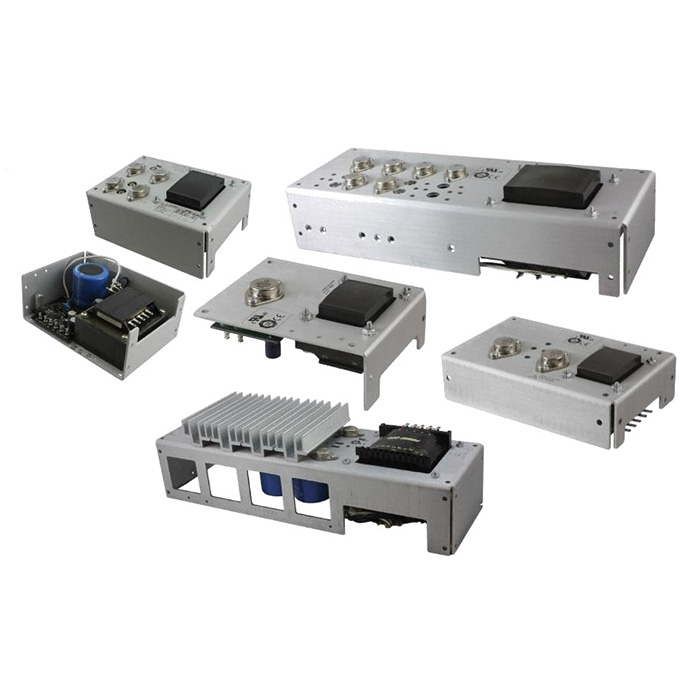

The Linear Series from Bel Power Solutions provides a wide range of input voltage support from 100 - 240 VAC and output voltages from 5 - 48 VDC, along with MTBF in excess of 300,000 hours, low output ripple, -0.05% regulation and overvoltage protection selectability on most models.
Features
  • RoHS compatible for all six substances
  • Low Output Ripple
  • CE marked to Low Voltage Directive
Specifications
  • Power (W): 10 ~ 288
  • Input Voltage Range (VAC): 87 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Convection
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko, UL
  • RoHS Compliant: Yes
