TET2200 (AC-DC/HVDC) Series
TET2200 (AC-DC/HVDC) Series

TET2200 (AC-DC/HVDC) Series

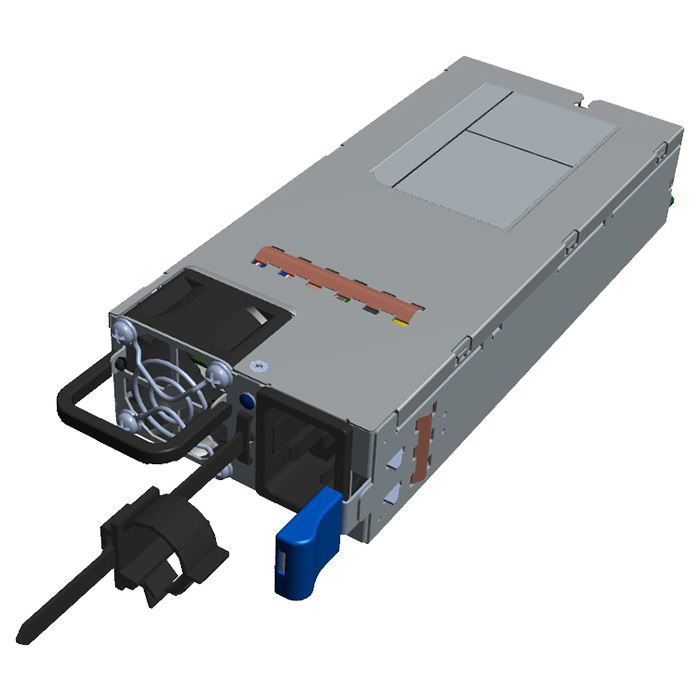

The TET2200-12-086 Series is a 2200 Watt AC-DC power-factor corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET2200-12-086 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • AC input with power factor correction
  • Hot-plug capability
  • RoHS Compliant
  • Status LED with fault signaling
  • Full digital controls for improved performance
  • Parallel operation with active current sharing through analog bus
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
Specifications
  • Power (W): 2200
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BIS, BSMI, CB, CE, CQC, CSA, EAC, KCC EMC, KCC Safety, Nemko
  • RoHS Compliant: Yes
