TET2000 (AC-DC/HVDC) Series
TET2000 (AC-DC/HVDC) Series

TET2000 (AC-DC/HVDC) Series

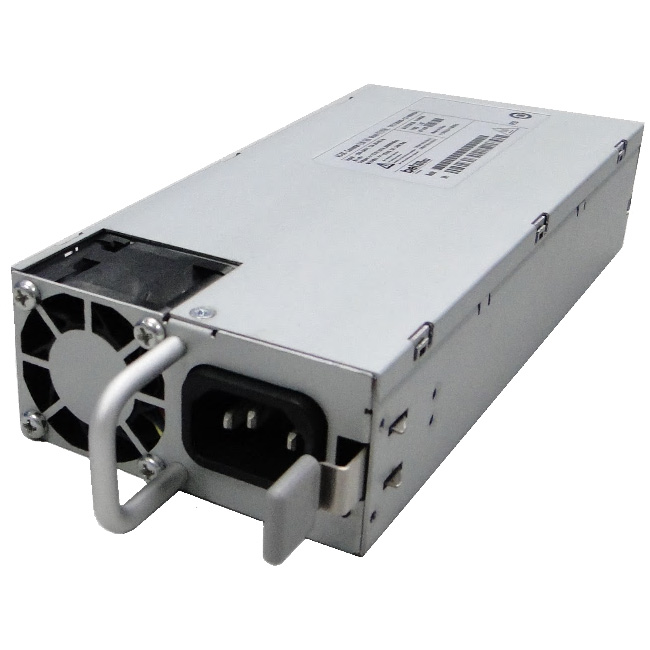

The TET2000-12-086 Series is a 2100 Watt AC-DC power-factor corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET2000-12-086 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • Best-in-class, 80 PLUS certified Titanium efficiency
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2000
  • Input Voltage Range (VAC): 90 ~ 264
  • Input Voltage Range (HVDC): 180 ~ 300
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
