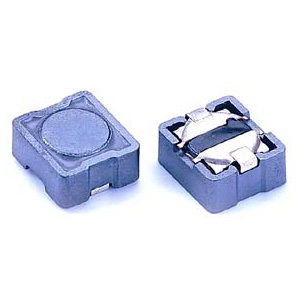

SCRH104 Series

The SCRH104 Series are fixed, low current, shielded surface mount inductors with inductance range from 1.0uH - 470uH and DC resistance from 0.014Ω - 1.74Ω. Max height of this SMD inductors is 5.0mm. These inductors have magnetically shielded construction, excellent power density and high efficiency.

Specifications

Inductance (uH): 1 ~ 470
Current (A): 0.44 ~ 7
Operating Temperature (ºC): -40 ~ +125
Mounting Type: Surface Mount
Shielding: Yes
AEC-Q200 Compliant: No
RoHS Compliant: Yes
