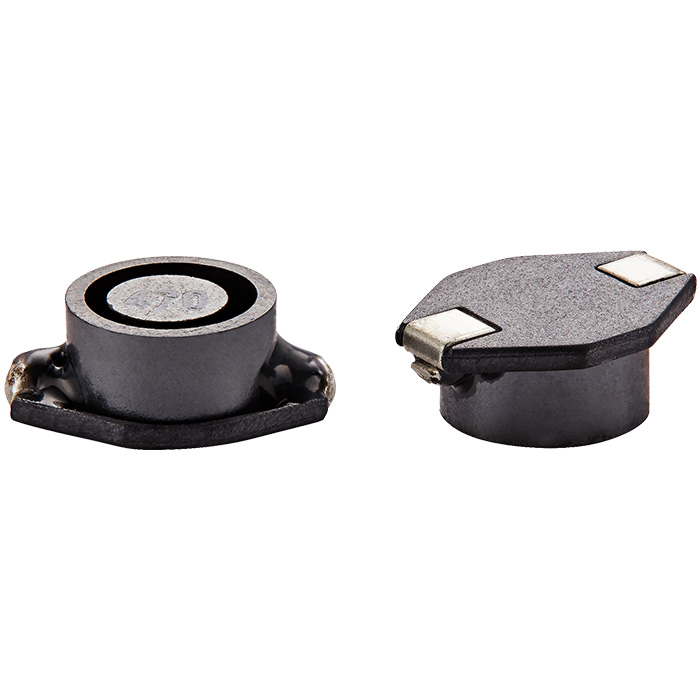

SC3316C Series

The SC3316C Series are fixed, low current, shielded surface mount inductors with inductance range from 1.0uH - 1000uH and DC resistance from 0.021Ω - 9.6Ω. Max height of this SMD inductors is 5.08mm. These inductors have magnetically shielded construction, excellent power density and high efficiency.

Specifications

Inductance (uH): 1 ~ 1000
Current (A): 0.2 ~ 6
Operating Temperature (ºC): -40 ~ +125
Mounting Type: Surface Mount
Shielding: Yes
AEC-Q200 Compliant: No
RoHS Compliant: Yes
