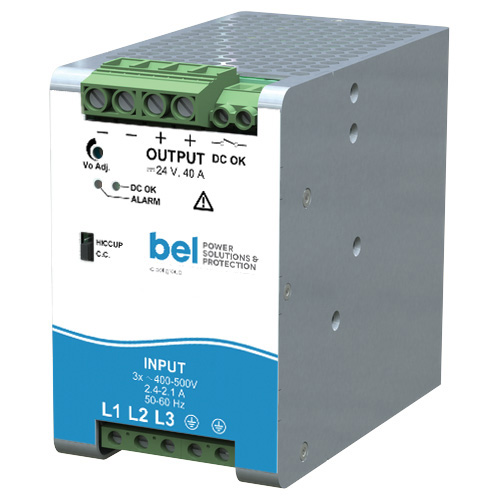

LDT960 Series

The LDT960 Series 3-Phase DIN Rail Switching Power Supply delivers up to 960 W of dependable power for industrial and automation systems. Supporting 400–500 VAC input and 24–72 V output (model dependent), it features a compact, efficient design with Class I isolation for safety. Suitable for SELV and PELV circuitry (up to 48 VDC models), the LDT960 Series is easy to install on a DIN rail inside a protective enclosure, making it ideal for demanding applications that require high power, reliability, and space-saving installation.

Features

Compactness
User settable current limitation (Hiccup or Constant Current)
Easy parallelable for power increase
Multiple protections

Specifications

Power (W): 960
Input Voltage Range (VAC): 340 ~ 550
Output Voltage (VDC): 24 ~ 48
Operating Temperature Range (ºC): -40 ~ +70
Cooling Type: Convection
Safety Standards: 61010
Safety Approvals: CE, UL
RoHS Compliant: Yes
