SCRH129-220

Share

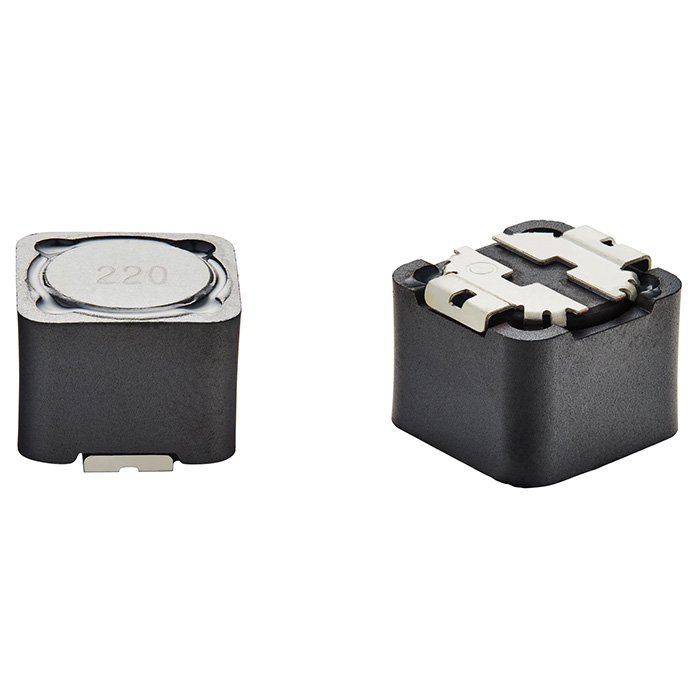

Shielded surface mount SMD lighting inductor | Inductance 22uH | Test Frequency 1 KHz | DC Resistance 0.039Ω | Saturation Current 6.5A | Temperature Current 4.38A | Max Height 10mm

Email Form

DESCRIPTION

Shielded surface mount SMD lighting inductor | Inductance 22uH | Test Frequency 1 KHz | DC Resistance 0.039Ω | Saturation Current 6.5A | Temperature Current 4.38A | Max Height 10mm

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE





Saturation (A) 6.5
Temperature Rise (A) 4.38
Max Height (mm) 10
DCR (Ohm) 0.039
Low EMI NO
Dimensions (mm) Max 12.5*12.5
Inductance (uH) 22
Test Frequency (KHz) 1
Shielding Shielded
Current (A) High
Low Profile NO
Core Ferrite
Low operating temp -40C
High operating temp +125C
